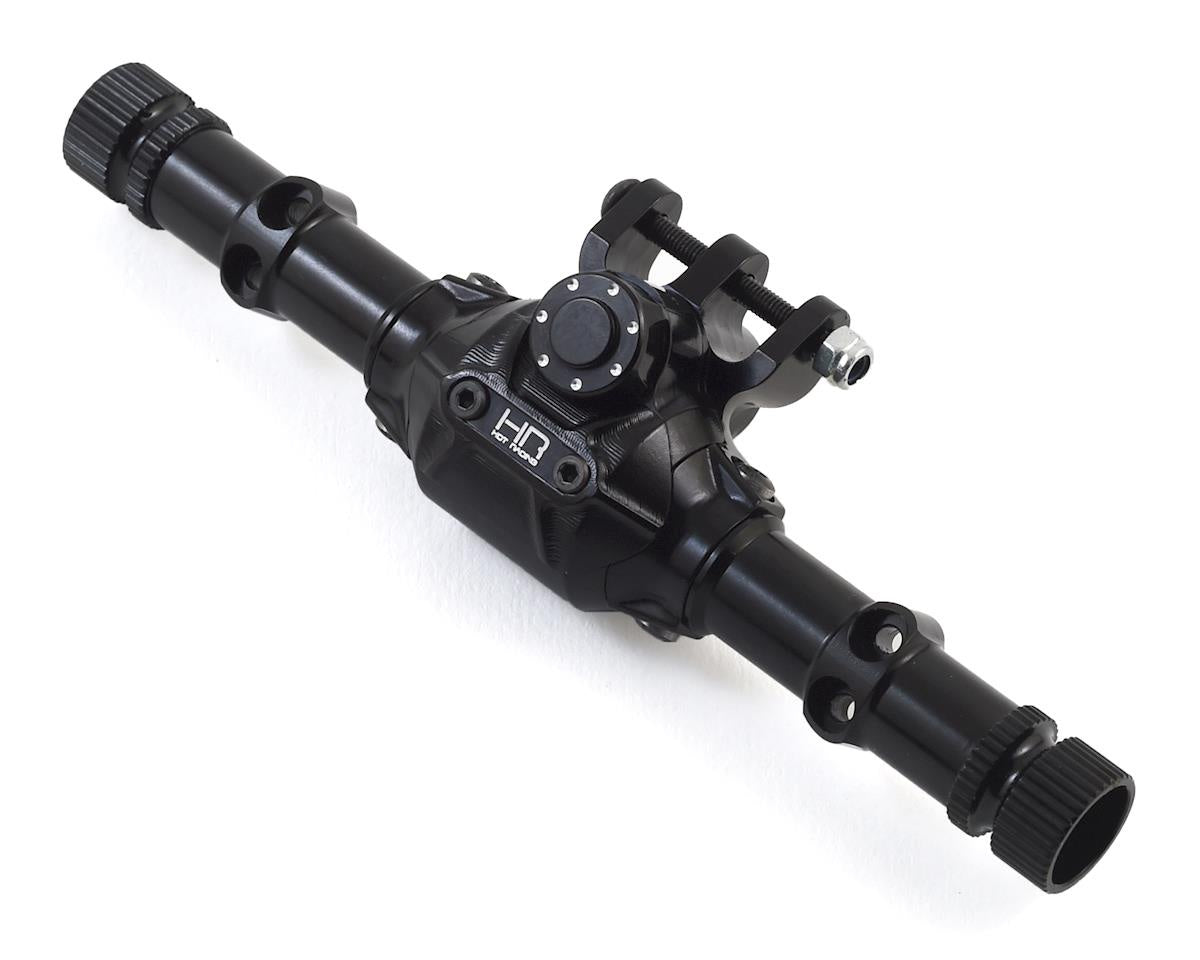

Hot Racing Axial SCX10 II Aluminum AR44 25:1 Worm Gear Crawler Axle

Hot Racing's billet aluminum AR44 25:1 worm gear axle housing for Axial SCX10 II kit and RTR vehicles provides ultimate strength, a huge gear reduction, and improved ground clearance for unparalleled crawling capabilities.

Features

• Black anodized CNC machined billet aluminum axle housing, tubes, differential cover, 4-link mount, and pumpkin
• 25:1 hardened steel worm gear set for ultimate torque
• Much improved ground clearance
• Locked differential
• Large gear reduction in a compact package
• Self-locking worm gears prevent the vehicle from unintentional rolling; the vehicle will hold itself on steep slopes without the aid of the motor
• Torque twist is minimized due to large gear reduction
• Integrated 4-link mount
• Full ball bearings
• Fits front and rear and requires no vehicle modification for use
• Replaces factory plastic axle case housing, diff cover and gears

You Will Receive

• One (1) aluminum axle housing
• One (1) aluminum differential cover
• One (1) worm gear set
• Three (3) 5x11x4mm ball bearings
• Two (2) 7x14x3.5mm carrier ball bearing

Specifications

• Ratio: 25:1
• Weight: 88g as packaged with gears
• Length tube end-to-end: 131.5mm
• Tube center to bottom of pumpkin: 12mm

Requirements

• Installation
• Parts from original axle, from the axle shafts out
• Two required per vehicle. If only one is used, a severe mismatch in front/rear gearing will result.
• Medium threadlock (blue threadlocking compound) on screws (screws may not have threadlock from the factory)

Comments

• Compatible with both the Axial SCX10 II kit and RTR
• Replaces Axial factory components: axle housing (AX31401), diff cover (AX31384), ring and pinion (AX31405), and locker (AX31404)
• description revised by: SN July 24, 2017
