Hot Racing 90mm Internal Spring Air Shocks (Green) (2)

Hot Racing 90mm internal spring air damper shock set for rock crawlers or other custom projects

Features

• CNC machined aluminum shock bodies, black anodized
• CNC machined aluminum upper shock cap with o-ring seal, green anodized
• CNC machined aluminum lower shock cap with shock shaft guide, green anodized
• Precision machined 7mm stainless steel shock shaft for durability
• Double o-ring lower shaft seal
• Air damping
• Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
• All aluminum is anodized for durability, corrosion resistance, and great looks

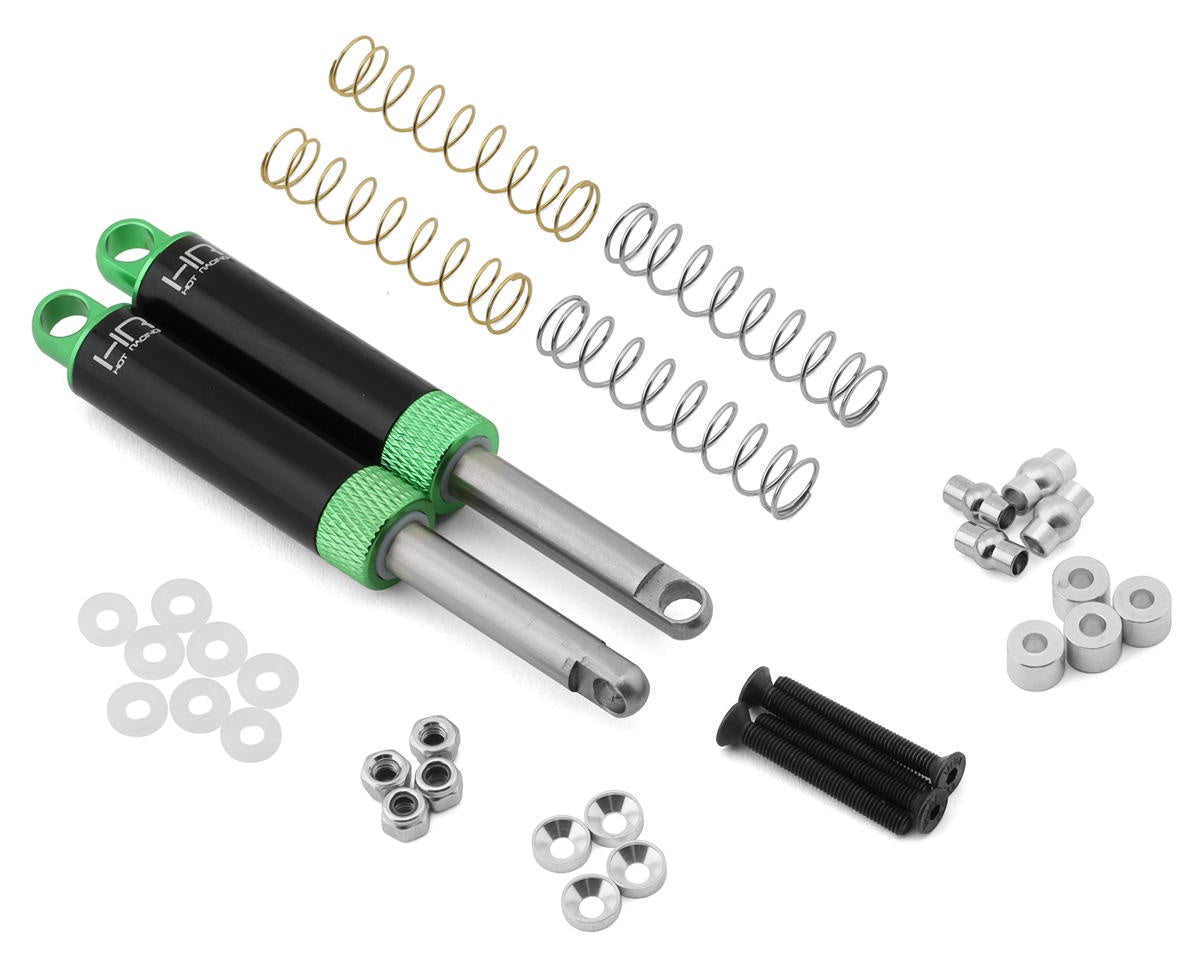

You Will Receive

• Two (2) assembled shocks
• Two (2) gold (soft) springs
• Two (2) black (medium) springs
• Two (2) silver (stiff) springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness

Specifications

• Extended center to center length: 90mm (3.5 inch)
• Compressed center to center length: 62mm (2.4 inch)
• Overall length: 98mm (3.9 inch)
• Body diameter: 13mm (0.5 inch)
• Shaft diameter: 7mm (0.3 inch)

Comments

• Available colors include: Black (TD90T01), Red (TD90T02), Green (TD90T05), Blue (TD90T06), and Silver (TD90T08)
• Replacement o-rings are Hot Racing RTD48RR
• description revised by: SN April 10, 2015
