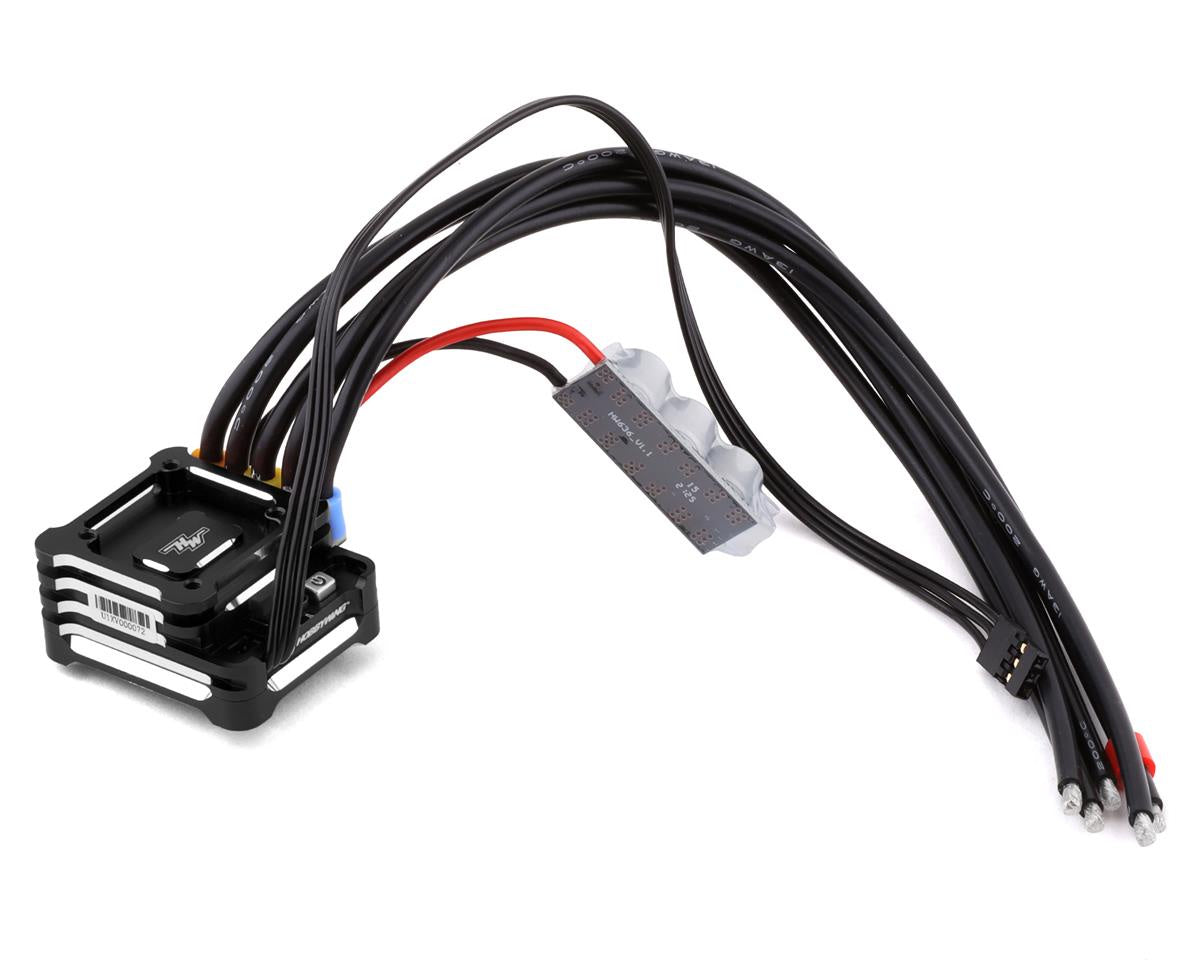

Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller (Black)

Hobbywing

Hobbywing Xerun XD10 Pro Drift Spec Brushless Speed Controller (Black)

Price: $189.99

Product details

Description

Best paired with

  • Hobbywing D10 Premium Motor (10.5T or 13.5T)
  • OTA programmer

Features:

  • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
  • A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
  • Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
  • Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fall-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
  • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
  • Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately).

    • Specifications:

  • Continuous Peak Current: 100A/800A
  • Input Voltage: 2S LiPo/4-6S NiMH
  • Application: 1/10th Drift Car
  • Size: 40.7x35.0x32.0mm (w/fan)
  • Weight: 95g 9w/wires)
  • Motor Limit: Brushless Motor Limit with 2S LiPo/6S NiMH: KV Rating/T Count =8.5T
    • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
    • A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
    • Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
    • Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fall-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
    • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
    • Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately).
