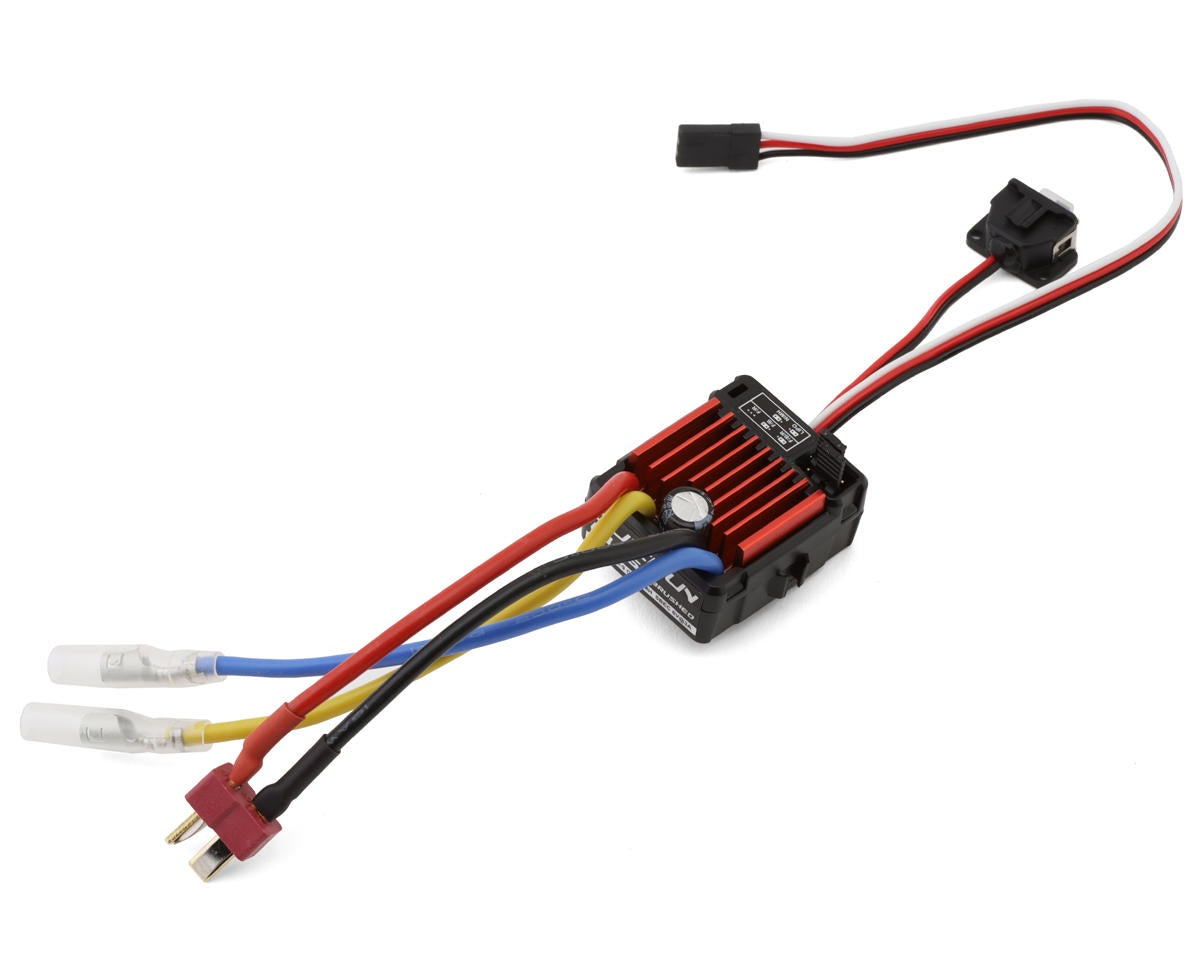

Hobbywing Quicrun 1060 1/10 Brushed ESC

QR1060 Suitable for 1:10 SPORT, BOAT, TANKER
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.
Water-proof and dust-proof, suitable for all weather races.
Small in size, with a built-in capacitor module.
Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.

Multiple protections

• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection.
• Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
• Fwd Cont. Current / Peak Current / Resistance: 60A/360A/0.001O
• Rev Cont. Current / Peak Current / Resistance: 30A/180A/0.002O
• Motor Type Supported: Brushed Motor
• Car Applicable: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
• Suitable Battery
• Brushed Motor Limit
• For 2S LiPo or 6 cell NiMH:
• 540 or 550 Size Motor: >12T,
• Or RPM<30000 @7.2V
• For 3S LiPo or 9 cell NiMH:
• 540 or 550 Size Motor: >18T
• Or RPM< 20000 @7.2V
• BEC Output: 2A/5V (Switch Mode)
• PWM Frequency: 1KHz
• Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g
• Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
• Cooling Fan: No need
• Input Connection: T-Plug
